Algae Cultivation Pipeline Photobioreactor

Name: Algae Cultivation Pipeline Photobioreactor
Brand: SHENZHOU
Rating: 5.0 (91 reviews)

Algae cultivation pipeline photobioreactor
Based on years of accumulated experience in algae cultivation and design, Liaoyang Shenzhou Machinery Equipment Co., Ltd. provides customers with design schemes and equipment manufacturing of pipeline-type algae cultivation bioreactors for large-scale production.

Availability:

Quantity:



Inquire Add to Basket

Model:
SZ-P1000L
Brand:
SHENZHOU

Product Description

Microalgae photobioreactor

Provide the following equipment manufacturing design solutions:

1. Different pipeline photobioreactor structures can be designed according to the different algae cultivation of customers, and the capacity can be increased or decreased at will, which is suitable for laboratory or large-scale industrial use. 2. Material selection can be plexiglass (acrylic, PMMA) or boric acid glass 3. Provide suitable circulating pumps in industrial large-scale algae culture pipeline reactors (selection of large flow, continuous work, no shearing force on algae cells) 4. Design ventilation and gas control devices 5. Good and reliable anti-leakage and detachable solutions 6. Provide various indicator detection and recording functions, and provide other output connection methods such as labview or serial port.

The pipeline photobioreactor can be customized:

1. Customize the pipeline capacity according to the customer's site size 2. Customize the outer diameter of the pipe according to customer capacity requirements (glass pipes with an outer diameter of 60mm, plexiglass pipes with an outer diameter of 90mm, 110mm, and 160mm) 3. Reliable connection schemes are adopted for different pipeline connections to ensure no water leakage and easy to disassemble and replace (silicone connection, plastic welding connection) 4. Customize the number of pipe layers according to the height of the customer site 5. Customize the pipe placement method according to the customer's requirements, upright or parallel

The driving mode of the pipeline photobioreactor can be combined with multiple operation driving modes:

1. Reduce dissolved oxygen and increase carbon dioxide 2. Reduce energy consumption, solar panels can drive the system to run 3. Reduce cell adhesion to the wall and clean the inner wall of the pipeline 4. Choose a reasonable drive mode according to cell characteristics

Specification

item	value
Capacity	50L~20000L
Automatic Grade	Automatic
Type	Tubular Reactor
Condition	New
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	Pump
Place of Origin	China
Brand Name	LYSZ
Voltage	110V 220V 230V
Power	0.75kw-45kw
Dimension(LWH)	Machine Capacity
Weight
Warranty	1 Year
Key Selling Points	Automatic
Applicable Industries	Building Material Shops, Food & Beverage Factory, Construction works , Energy & Mining, Other
Showroom Location	None

Details Images

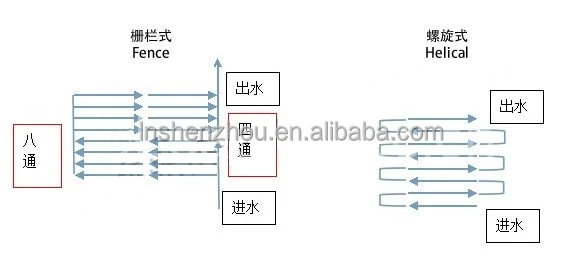

The pipeline photobioreactor structure is divided into parallel pipeline structure and vertical pipeline structure A) Parallel pipeline structure photobioreactor is divided into fence type pipeline and spiral pipeline structure
