Co2 Supercritical Extractor/ Supercritical Co2 Fluid Extraction Equipment / Supercritical Extraction Machine

Availability:

Quantity:



Inquire Add to Basket

Model:
5L
Brand:
SHENZHOU

Product Description

The technology of SFE(Supercritical Fluid Extraction) is a new subject from Modern Chemicals Industries, which is one of the advanced Separation Technology. As for SCF(Supercritical Fluid), it is was that fluid on Critical Point(Pc, Tc) under
Thermodynamic State, the Critical Point is the state point when interface of Gas and Liquid disappear, which process very novel physical& chemical characters. It density degree close to liquid, viscosity degree close to gas, but bigger diffusion coefficient & dielectric constant, smaller viscosity etc. these characters have contributed to good separation effects. So the SFE is mainly about Separation, the solution will touch with extracted materials under High Pressure& Suitable Temperature, the Solutes would be diffused into the solution, then change the operation Conditions, to make the Solutes separate out.

The supercritical CO2 extraction is specially suitable for extraction of fat-soluble and heat sensitive substances with high
boiling point. Take CO2 as the solvent to make extraction and purification upon a lot of products such as biological products, foodstuff .
SZ

1. Product description lab use 1L sfe CO2 supercritical fluid extraction machine

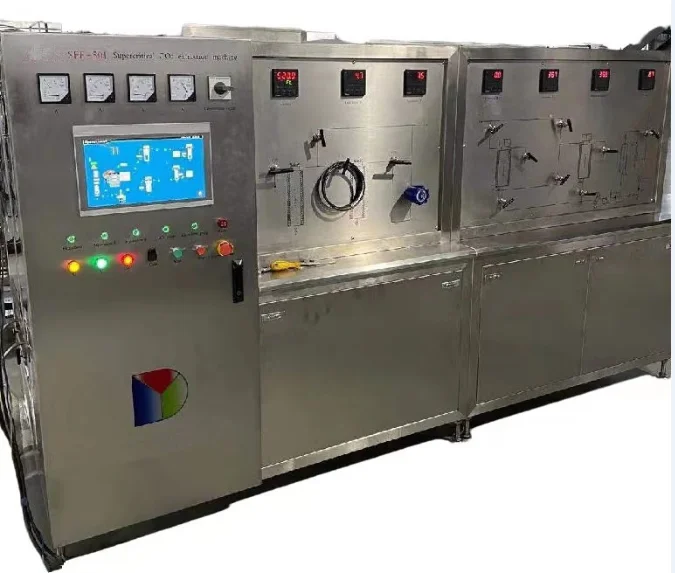

TOPTION brand Supercritical Fluid Extraction Machine is also named as Essence Extraction Machine, which is used for the extraction of material (solid or liquid) under high pressure and suitable temperature extraction.

Changing conditions in the separation kettle, the dissolved substances will resolve in order to achieve the purpose of separation.

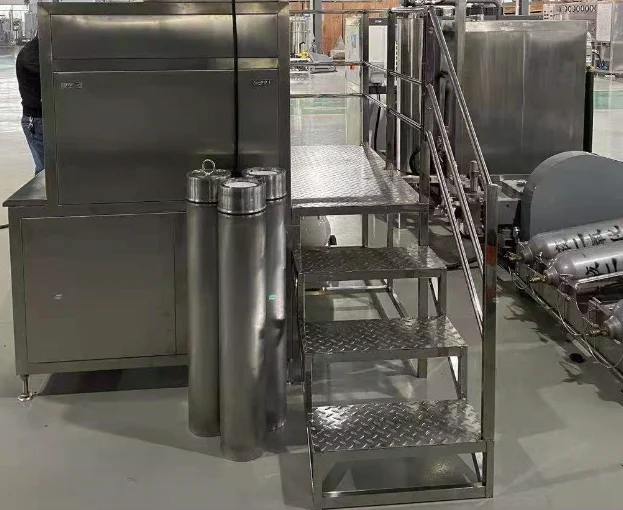

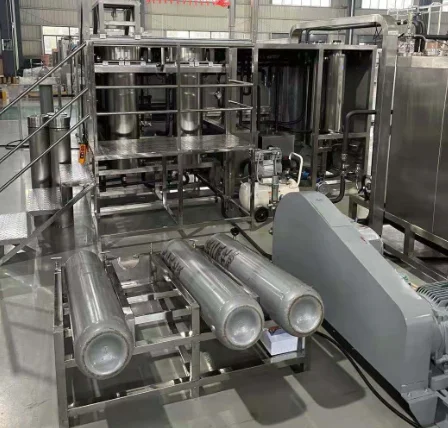

Supercritical CO2 extraction equipment includes several parts:

Extraction kettle	Separation kettle	Commingler

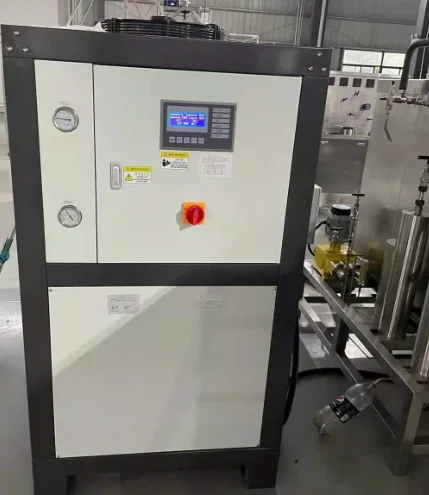

CO2 high-pressure pump	Entrainer pump	Refrigeration system
Heat exchange system	CO2 storage tank	CO2 level gauge
Purification system	Flow meter	Temperature control system

Specification

Model	Extraction capacity	Pressure	Temperature range	Combining form
SZ120-50-0.5	0.5L	500bar	RT-75℃	One extracting pot-two separating pot circulation mode.
SZ121-50-0.5	0.5L	500bar	RT-75℃	One extracting pot-two separating pot one rectifying column circulation mode.
SZ120-50-01	1L	500bar	RT-75℃	One extracting pot-two separating pot circulation mode.
SZ121-50-01	1L	500bar	RT-75℃	One extracting pot-two separating pot one rectifying column circulation mode.
SZ120-50-02	2L	500bar	RT-75℃	One extracting pot-two separating pot circulation mode.
SZ121-50-02	2L	500bar	RT-75℃	One extracting pot-two separating pot one rectifying column circulation mode.
SZ120-50-05	5L	500bar	RT-75℃	Two extracting pot-two separating pot circulation mode.
SZ121-50-05	5L	500bar	RT-75℃	Two extracting pot-two separating pot one rectifying column circulation mode.
SZ220-50-06	(5+1)L	500bar	RT-75℃	Two extracting pot-two separating pot circulation mode.
SZ221-50-06	(5+1)L	500bar	RT-75℃	Two extracting pot-two separating pot one rectifying column circulation mode.
SZ220-40-11	(10+1)L	400bar	RT-75℃	Two extracting pot-two separating pot circulation mode.
SZ221-40-11	(10+1)L	400bar	RT-75℃	Two extracting pot-two separating pot one rectifying column circulation mode.
SZ220-40-20	(10+10L	400bar	RT-75℃	Two extracting pot-two separating pot circulation mode.
SZ221-40-20	(10+10L	400bar	RT-75℃	Two extracting pot-two separating pot one rectifying column circulation mode.
SZ120-40-24	24L	400bar	RT-75℃	One extracting pot-two separating pot circulation mode.
SZ121-40-24	24L	400bar	RT-75℃	One extracting pot-two separating pot one rectifying column circulation mode.
SZ220-40-48	24L×2	400bar	RT-75℃	Two extracting pot-two separating pot circulation mode.
SZ221-40-48	24L×2	400bar	RT-75℃	Two extracting pot-two separating pot one rectifying column circulation mode.
SZ320-40-72	24L×3	400bar	RT-75℃	Three extracting pot-two separating pot circulation mode.
SZ321-40-72	24L×3	400bar	RT-75℃	Three extracting pot-two separating pot one rectifying column circulation mode.
SZ420-40-96	24L×4	400bar	RT-75℃	Two extracting pot-two separating pot circulation mode.
SZ421-40-96	24L×4	400bar	RT-75℃	Two extracting pot-two separating pot one rectifying column circulation mode.
SZ220-40-100	50L×2	400bar	RT-75℃	Two extracting pot-two separating pot circulation mode.
SZ221-40-100	50L×2	400bar	RT-75℃	Two extracting pot-two separating pot one rectifying column circulation mode.
SZ320-40-150	50L×3	400bar	RT-75℃	Three extracting pot-two separating pot circulation mode.
SZ420-40-200	50L×4	400bar	RT-75℃	Four extracting pot-two separating pot circulation mode.
SZ220-40-200	100L×2	400bar	RT-75℃	Two extracting pot-two separating pot circulation mode.
SZ630-40-300	50L×6	400bar	RT-75℃	Six extracting pot-three separating pot circulation mode.
SZ320-35-300	100L×3	350bar	RT-75℃	Three extracting pot-two separating pot circulation mode.

Details

Main feafures of Supercritical Co2 extraction machine:1) Intermittent or continuous work,co-solvent can be added if request. 2) CO2 can be recovered and reused. 3) Pressure and temperature can be designed according to demand. 4) Can custom made into PLC or computer control. Application of Supercritical Co2 extraction machine:

Agriculture Food	Extraction of pesticides and soil contaminants. Separation of fats and contaminats, flavors.
Cosmetic	Extraction of fragrances and oils.
Laundry	Dry cleaning of garments.
Mechanical	Degreasing parts, precision cleaning of high-value componets.
A wide range of industries for the extraction of natural products for the food additives (such as ginger, large bolt, cinnamon, anise, hops, pepper, cumin,etc), drugs (such as artemisia annua vegerarian, magnolia, angelia, etc), health care (such as sea buckthorn, samara, pomegranate, lycopene, etc).
