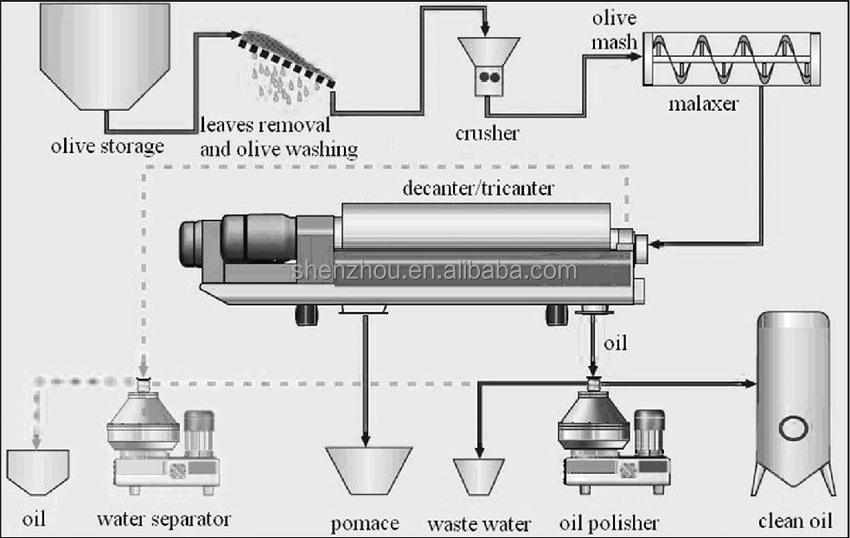

For more than 40 years now, Shenzhou has used decanters, Tricanter® machines and separators for manufacturing and extracting olive oil. The process consists of the 1st and 2nd extraction. Flottweg centrifuges can be found in all countries where olive oil is manufactured - e.g. Spain, Italy, Greece, North Africa, Turkey, Syria, Australia and even in China.
In olive oil manufacture, what counts is high yield, outstanding quality as well as low process and energy costs. This can only be achieved by using a centrifuge to extract the olive oil. Put your trust in Flottweg's decades of experience, and specially adapted machines for manufacturing olive oil.
Decanter for 2-phase of separation - oil and solids are separated
Tricanter for 3-phase separation - water, oil and solids are separated
Separator for treating and refining the olive oil
Very low fresh water consumption and a small amount of resulting wastewater
First-class oil quality and a high yield of raw materials
Low use of personnel because of continuous and automatic operation
Low energy and process costs
Long service life of the machines and comparatively low maintenance requirements
Depending on the olives and processing, the decanter or Tricanter® can extract between 85 and 90% of the olive oil in the 1st extraction. The yield from olive oil manufacture can be increased even further with a 2nd extraction. The olive oil yield increases to as much as 96% by combining the 1st and 2nd extractions.
Technical parameters of olive oil decanter centrifuge
Type | Bowl diameter(mm) | Bowl length/ Bowl diameter | Bowl speed (r/min) | Main Power(Kw) |
LWS355 | 355 | 3.3-4.5 | 4000 | 15-18.5 |
LWS420 | 420 | 4.1 | 3600 | 22 |
LWS500 | 500 | 4.2 | 3000 | 30 |
LWS530 | 500 | 4.2 | 3000 | 30 |
LWS580 | 580 | 4.1 | 2800 | 45 |
LWS620 | 620 | 4 | 2800 | 45 |
Note: In case of differences between the table and the user manual, the latter shall prevail. | ||||
The LWS decanter separator is suitable for plant oil,( such as palm oil, coconut oil, olive oil
separation ,) animal oil(such as fish oil, restaurant garbage ect) coal tar dehydration and slag,
adapted to the different viscosity and water content in coal tar separation (emulsion), after separating
the tar reach national standard.
