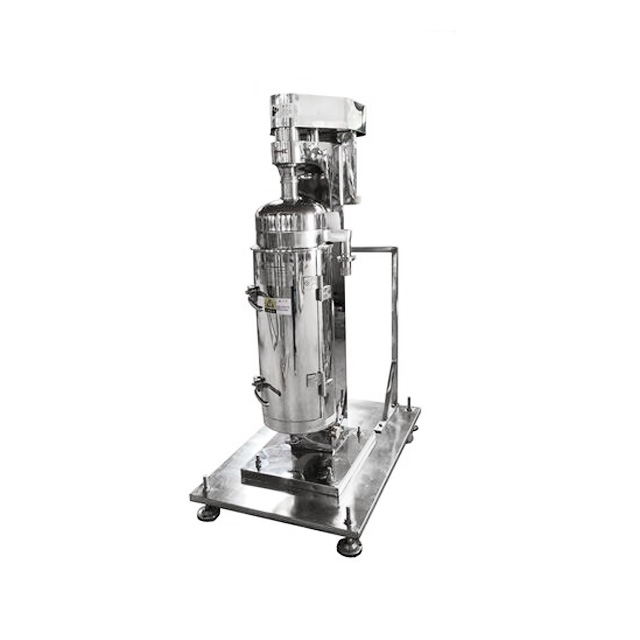

High Speed Tubular Centrifuge, also called Tubular Bowl Separator, is a kind of fine separation equipment suitable for suspensions with thin concentration, fine particles, and small density difference solid-liquid separation, or liquid-liquid-solid separation. It is indispensable equipment for pharmaceutical, food, chemical, biological product, fermentation broth, beverages, blood products and other industries. High Speed Tubular Centrifuge working principle is that materials with different specific gravity are subject to different centrifugal forces when rotating at high speed, so as to achieve the purpose of separation.
GQ Clarification Tubular Centrifuge (Liquid phase-solid phase)
G-Tubular Type Q-Clarification Type
The GQ type is mainly used for a variety of difficult-to-separate suspensions in the separation industry, and is especially suitable for the separation of solid-liquid two-phase separations with thin concentration, fine particles and small specific gravity differences.

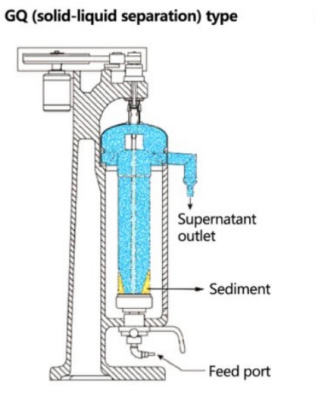

GQ Working Principle
1. The centrifuge rotates at a high speed to reach a suitable working speed (the speed can be adjusted via the control panel), and the mixed suspension is continuously fed from the bottom, and the suspension are layered under the action of centrifugal force;
2. The density of the liquid in the suspension is relatively small, and it spirally rises gradually from bottom to top and then continuously discharges from the clear liquid outlet on the upper part of the rotor;
3.The solid phase is relatively heavier, and it will settle inside the bowl. After the solid is collected, turn off the centrifuge, and manually remove the rotor for slag cleaning;
4. After cleaning the slag, you need to reset the rotor installation, and then start the next separation process.
Technical Parameters
Model |
GQ45 |
GQ75 |
GQ105 |
GQ125 |
GQ150 |
Inner diameter(mm) | 45 | 75 | 105 | 125 | 142 |
Rotary speed(r/min) | 30000 | 19000 | 16300 | 15000 | 14000 |
Volume(L) | 0.4 | 2.2 | 6 | 8 | 10 |
Separation factor(w²r/g) | 21168 | 15700 | 15620 | 15750 | 15700 |
Productivity(water flow)(kg/h) | 100 | 600 | 1200 | 1500 | 2500 |
Power(kw) | 0.55 | 1.5 | 2.2 | 3.0 | 3.0 |
Weight(kg) | 90 | 300 | 570 | 610 | 665 |
Diamensions(mm)(L*W*H) | 480*460*800 | 760*450*1120 | 840*500*1600 | 900*550*1600 | 1020*600*1600 |

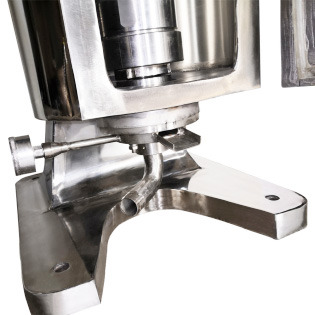

| New Inlet Bearing Seat Dampens All Points The design structure of the inlet bearing seat part is a damping structure, and the traditional structure can not play a damping role at all points on the circumference, which increases the instability and failure rate of the equipment operation. After our company changed the structure of the inlet bearing seat, not only can all points on the circumference play a damping role, but also make the original single damping structure into a double damping structure, which enhances the stability of equipment operation, prolongs the service life of wearing parts, and reduces the failure rate.
|
| 3 Times Bowl Heat Treatment Process Traditional bowls are only heat treated once, either to increase bowl strength or to increase corrosion resistance (only increasing corrosion resistance treatment does not meet the requirements of industry manufacturing standards), which can only have a single effect. Our bowls are heat-treated three times to increase bowl strength, increase corrosion resistance and stress failure. The change in material of certain wearing parts extends the service life of the wearing parts, thus reducing the cost of use for users.
|

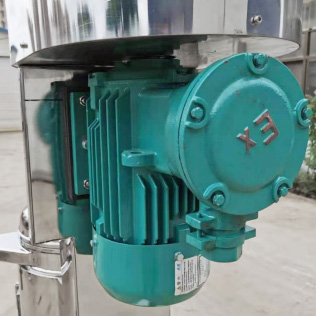

| The motor of tubular centrifuge We can provide standard normal motor or explosion-proof motor. Normal power supply is 380V, 50Hz, 3-phase, 2.2kw. Different voltage in different country can be customized. Such as 220V or 415V, 50Hz or 60Hz, 1-phase or 2-phase. |
Features Of High Speed Tubular Centrifuge
The enclosure shape is of square shape and round shape.
Stainless steel 304 is used for the surface wrapping of the enclosure.
Stainless steel 316L for the parts in contact with the suspension.
The enclosure body with door-opening design is convenient for disassembly and assembly of the bowl, reduces labor intensity and the separation effect is not affected.
Optional VFD control cabinet, start by inverter, adjustable speed, reduce the starting current and the degree of damage to the transmission components and wear parts, and improve the service life of the equipment and the motor.
The control cabinet is optionally equipped with PLC and touch screen to display the speed and temperature.

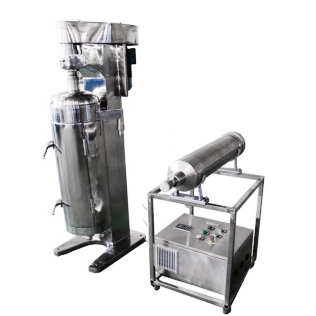

According to the field of use, explosion-proof type and cooling type with cooling coil are available.
Mobile integrated base is available.
FAQ
Q1:Are you a manufacturer or a trader?
A: As a professional manufacturer, we have our own factory, and if a customer has reasonable demand, out machine can be customized.
Q2: How do you ensure the machine quality?
A: As a professional manufacturer of pharmaceutical devices for more than 40years, with strict management, advanced processing technologies and professional workers, we are confident for our machines quality. And before any machine is delivered, will be carefully tested.
Q3: How can I trust you for the first cooperation?
A: Since our company was founded, we have registered in China Industry and Commerce Bureau. We passed the SGS & ISO certification, and we are a senior member in Made in China platform (more than 12 years).
For the first deal between us, the Made in China Trade Assurance service can be used, which will fairly protect your rights and money throughout the transaction process.
Q4: How do I place an order, and how is it completed?
A: Under the condition that the buyer is satisfied with the quotation and pre-sales service:
1. Both of parties sign on a contract,and then the seller prepare the PI.
2. The buyer arranges the down payment.
3. The seller prepares the machines.
4. After the machine is completed, have the test & trial run.
5. Before the delivery, if the buyer requires, have the necessary inspecting.
6. As the contract/ PI amount, the buyer balances the payment.
7. The machine is going to be shipped.
8. After the machine is received, the seller provide the buyer guidance for the installation and the debugging.
Q5: How do I contact you?
A: Leave messages on this page, and click "send".
Or by Email, WhatsApp, WeChat, Skype, QQ or phone, etc.
