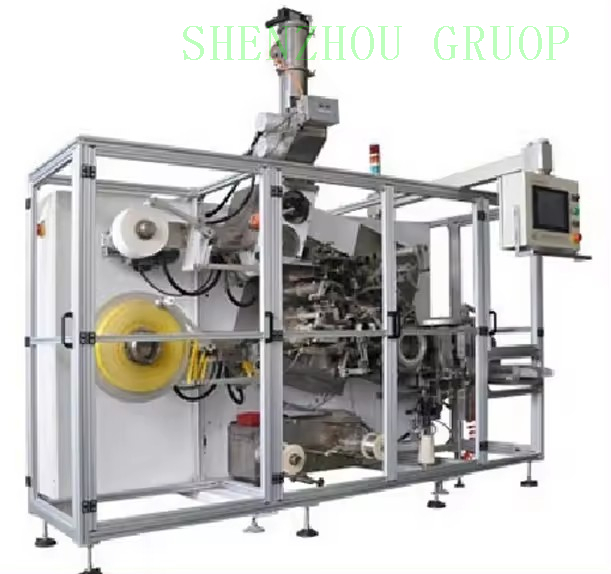

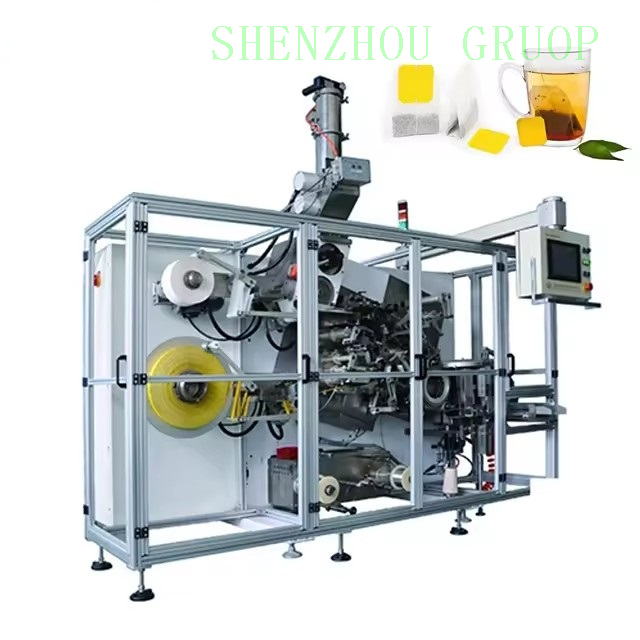

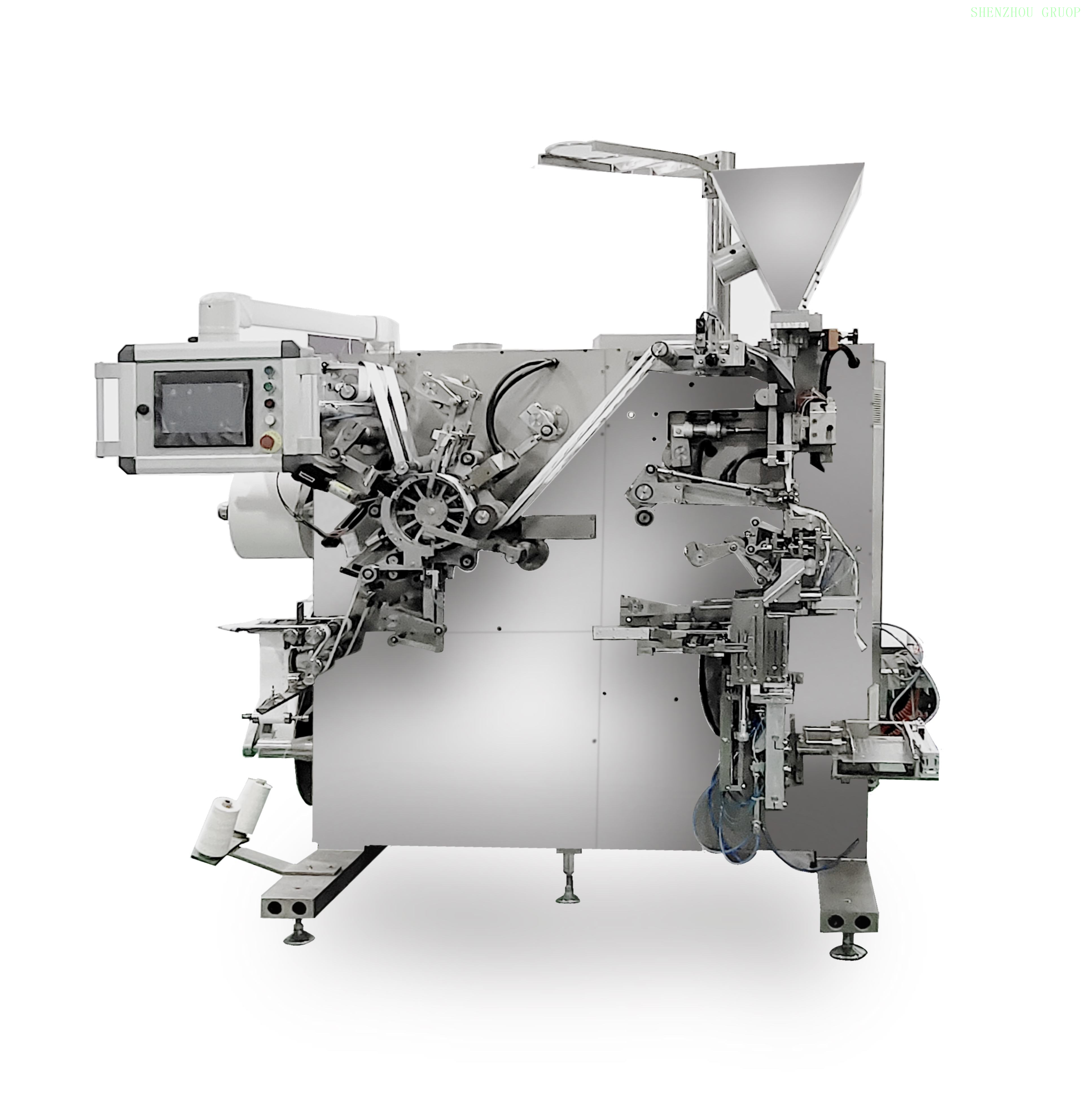

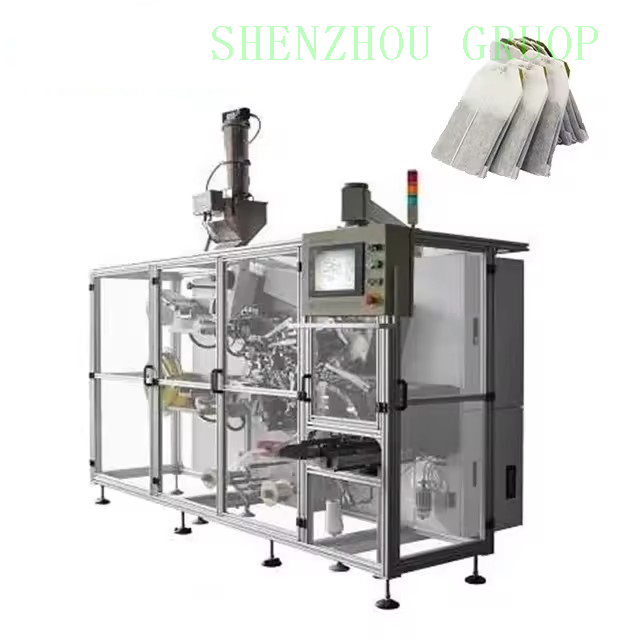

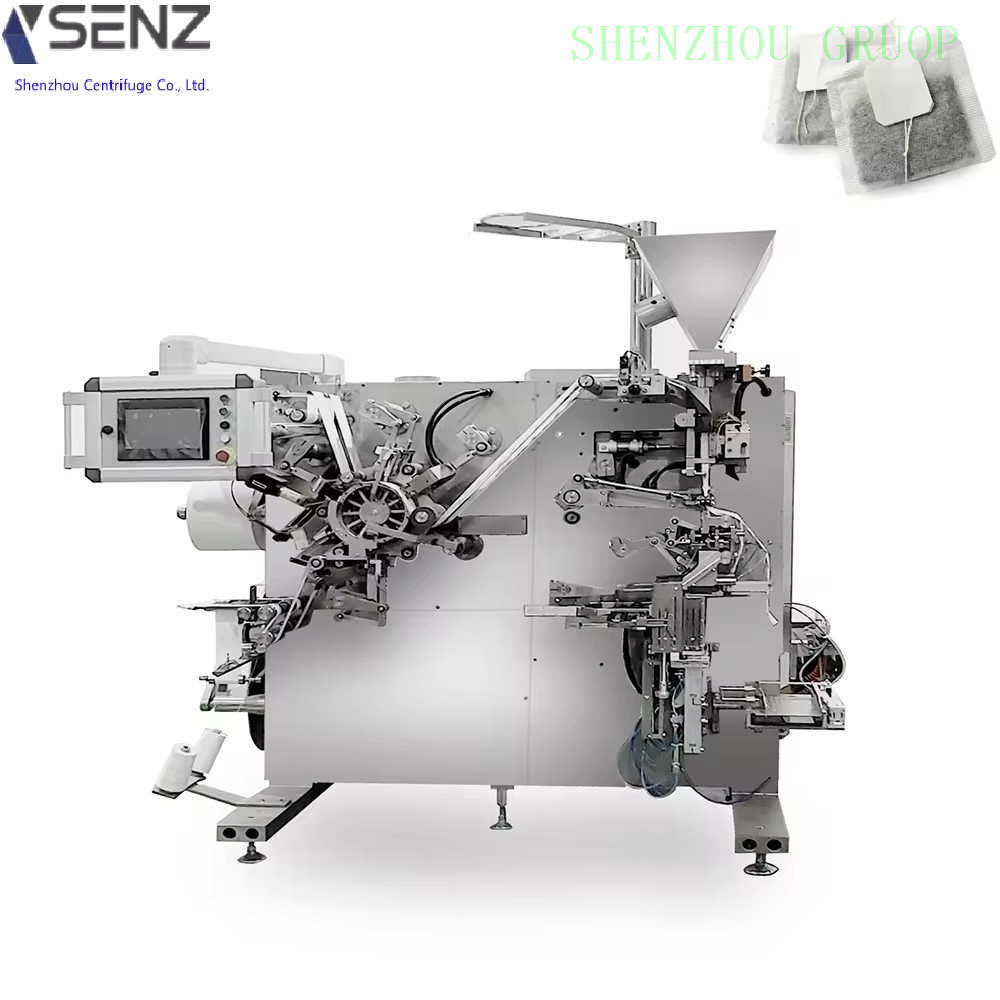

This high-speed tea packaging machine is mainly used for packaging of crushed tea and other similar granular materials (20 to 40 mesh bulk non-stick granular or flaky materials), which can realize the functions of automatic feeding, double-row slitting of inner bags, heat sealing and welding of label filter paper cotton thread, counting and stacking of tea bags and grouping output, etc.; it can be customized to develop the functions of summarizing and feeding inner bags into outer bags, heat sealing and forming of outer bags, counting and grouping output of finished products, etc.; the whole machine can complete the product packaging work in a coordinated and orderly manner through PLC, HMI and multi-axis servo control system.
1. Double rows of synchronous output, greatly improving production efficiency
2. Innovative bag type: back sealed inner bag, double inserted feet, with chamfered corners
3. Hidden design of cotton thread, adjustable length
4. Automatic heat-seal welding of label, cotton thread and filter paper
5. New drawer type double station metering feeding
6. Active unwinding of package material, double column slitting, automatic correction of deflection
7. Different specifications of internal and external bags can be customized
| Packing material | Crushed tea and similar granular materials (20-40 mesh loose non-cohesive granular or flake materials) | ||
| Maximum packing capacity | 6cm³/bag(±5%) | 9cm³/bag(±5%) | 12cm³/bag(±5%) |
| Inner bag size | 40×60mm | 45×65mm | 50×80mm |
| Outer bag size | 70×80mm | 75×95mm | |
| Label size | 20×24mm | ||
| Thread length | 150±5mm | ||
| Maximum working speed in a single lane | 120times/min | ||
| Maximum productivity | 240bags/min | ||
| Power | 380VAC | ||
| Voltage | ≤10kW | ||
| Air source | 6bar,400L/mim | ||
| Other functions | Automatic alarm shutdown in case of lack of material or failure, etc. | ||
