| Quantity: | |
|---|---|
LWD
SHENZHOU
100
1. Two motor, two frequency inverter drive system, realize differential speed stepless regulation and energy return
2.Spiral stoker blades: Surfacing welding tungsten carbide grinding
3.Drum cone cylinder material outlet: Replaceable wear resistant, corrosion resistant ceramic alloy bushing
4.Main bearing: Sweden Janpan
5. Main sealing parts: Taiwan SOG, material is Nitrile butadiene rubber
6. Electrical protection: overload, phase loss, torque protection
7. Main and vice inverter use common DC bus, vice motor’s function is generating electricity ( save electricity)
Structures and properties:

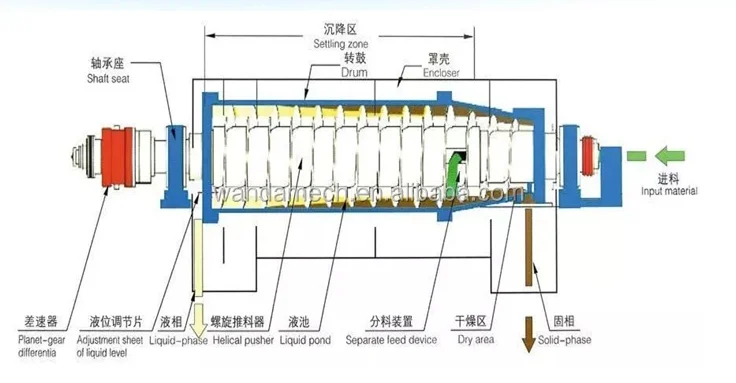

This machine is horizontal spiral discharging settling centrifuge, the main machine has a column-cone bowl, spiral stoker, differential system, bearing seat, base, cover, main motor,vice motor, and electric control chamber. With the high speed rotating of bowl, form strong centrifugal force, making the sludge dehydrate continuously in 24 hours a day.
The main motor through the triangle belt make the bowl rotating, through the planetary gear differential, make the vice motor and spiral differential speed different, realize sludge dewatering and pushing material function, That means differential rotating speed control and torque control. because containing solid rate of sludge may have wave motion, by differential speed control system is the guarantee for speed stability, achieve solid content in sludge is constant, the constant torque control make decanter load in a stable state, the separation effect and flocculation is the best state, so as to ensure the safe operation of the centrifuge.
It has good seal performance (guarantee without material leak in the process of operation), sludge dewatering work in full seal state, makes the environment clean.
 |
This machine adopts the most advanced international special structural design, especially the spiral stoker, make the sludge concentration dehydration integration characteristics. It has better performance than ordinary centrifuge, more high capacity, better separation effect, save energy and manual work.
LWD series centrifuge provides 3 drive modes: RFD and VFD, FHD satisfied with many customers' choice !
FHD(Fully hydrauli drive) centrifuge is driven by fully hydraulic power.
As to RFD(rated frequency drive) centrifuge, the rotating bowl speed is fixed, so the speed can be changed only by changing drive pulley;
While VFD (variable frequency drive) centrifuge can achieve large-range stepless speed regulation easily with parameters
displayed, e.g. speed and working current.
Horizontal spiral discharge sedimentation centrifuge (referred to as decanter centrifuge) is an effective separation equipment which use centrifugal acceleration generated by high-speed rotation into the acceleration of gravity to shorten thousands of times of the settlement time of solid particles than in the gravity field.
The solid particles are discharged from the drum through the screw conveyor continuously and without interruption.
Centrifuge Drum and spiral parts titanium welding with 304/316 / 316L/321 stainless steel, stale performance and long service, warmly welcomed by the customers at home and abroad.
Bowl Material: Duplex Stainless Steel SS2205
Solids Discharge port: Tungsten Carbide insert
Bearing: SKF or Japan NSK Brand
Gearbox type: planetary wheel type
Screw Conveyor Material: Duplex Stainless Steel SS2205
Material Distribution Nozzle: : Tungsten Carbide insert
Screw Conveyor Wear Protection: Tungsten Carbide Tiles
Differential Speed: Adjustable according to conditions
Bearing: SKF or Japan NSK Brand
| Model | Diameter(mm) | Lenght(mm) | Max speed | L/D ratio | G-force | Capacity(m3/h) | Main motor power(Kw) | Weight(kg) | Dimension (mm) |
| LW250*1000 | 250 | 1000 | 5000 | 4 | 2722 | 0.5-5 | 7.5 | 950 | 2120*1250*680 |
| LW300*900 | 300 | 900 | 4200 | 3 | 2964 | 1-6 | 11 | 1160 | 2150*1300*900 |
| LW300*1200 | 300 | 1200 | 4000 | 4 | 2784 | 2-6 | 11 | 1350 | 2450*1300*900 |
| LW355*1160 | 355 | 1160 | 3600 | 3.3 | 2576 | 2-8 | 15 | 1400 | 2470*1350*830 |
| LW355*1460 | 355 | 1460 | 3600 | 4 | 2576 | 2-10 | 15 | 1800 | 2750*1350*830 |
| LW400*1200 | 400 | 1200 | 3200 | 3 | 2294 | 3-12 | 18.5 | 1800 | 2730*1600*1080 |
| LW400*1600 | 400 | 1600 | 3000 | 4 | 2016 | 3-15 | 22 | 2000 | 3130*1600*1080 |
| LW450*1800 | 450 | 1800 | 2800 | 4 | 1976 | 4-25 | 37 | 2500 | 3320*1700*1130 |
| LW500*2000 | 500 | 2000 | 2800 | 4 | 1750 | 5-35 | 45 | 4000 | 3520*1800*1170 |
| LW530*1855 | 530 | 1855 | 2600 | 3.5 | 2006 | 5-38 | 55 | 4680 | 3885*1350*1600 |
| LW530*2120 | 530 | 2120 | 2400 | 4 | 1709 | 5-40 | 55 | 4800 | 4150*1350*1600 |
| LW550*2000 | 550 | 2000 | 2800 | 4 | 2414 | 6-40 | 55 | 5700 | 4570*1380*1600 |
| LW650*1950 | 650 | 1950 | 2200 | 3 | 1761 | 6-45 | 75 | 5000 | 4840*1510*1720 |
| LW650*2600 | 650 | 2600 | 2000 | 4 | 1456 | 6-65 | 90 | 6000 | 5490*1510*1720 |
| LW720*2160 | 720 | 2160 | 2000 | 3 | 1612 | 7-80 | 120 | 6000 | 5200*1600*1800 |
| LW720*2880 | 720 | 2880 | 2000 | 4 | 1306 | 7-90 | 120 | 8000 | 3100*1600*1800 |
| LW800*2400 | 800 | 2400 | 1800 | 3 | 1451 | 20-100 | 150 | 12000 | 5820*2000*1300 |
| LW800*3200 | 800 | 3200 | 1800 | 4 | 1451 | 20-120 | 150 | 1300 | 7100*2000*1300 |
Large conveying torque:
Imported hydraulic pump and motor are adopted to achieve variable speed, big conveying torque and speed and reliability; the hydraulic differential speed conveying torque can be adjusted automatically according to the actual working condition.
Automatical control:
The centrifuge has switch of pressure, vibration, temperature, tec. Which can monitor. start and stop feed pump automatically.
LWD series decanter centrifuge is currently used in Drilling Waste Management, trenchless HDD, oil & gas drilling, tunnelingconstruction, environment protection, Oil Mud Seperation, mining, chemical Industry, food industry, Pharmaceutical Industry, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Water Drilling etc
Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint sludge,plastic
particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,sewage sludge treatment of waterworks.
Other fields
Pharmaceutical intermediates,salts and manures,etc.
If you want to know more please contact me:Cathy Tel:+8618941925296(WhatsApp)
Company Profile
FAQ
Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use famouse good quality materials and the best production process
Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the
procedure is complex and the fee is high. You can also use Western Union and Paypal.
Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q4.How long is the warranty period ?
A:12 months.
