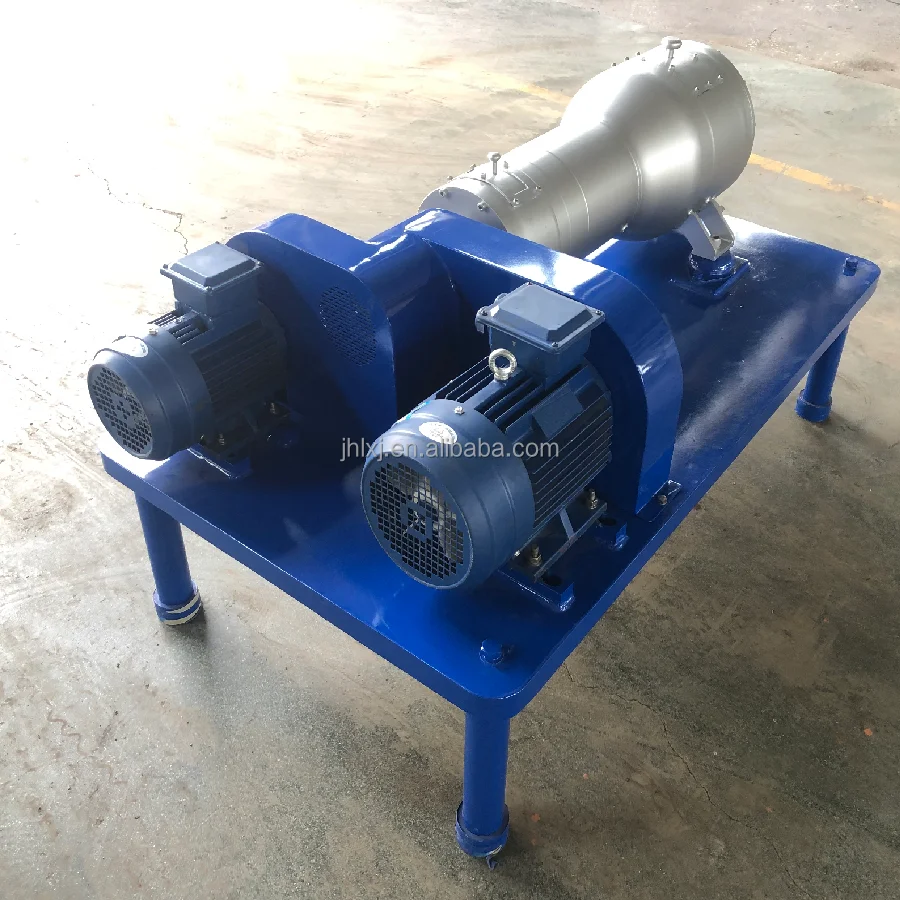

Mini Laboratory Decanter Centrifuge Machine for Restaurant Waste Disposal

Product Description

rd

The minimum throughputs of industrial decanter centrifuges are generally far greater than the throughputs required for the quantities of products available in research laboratories. In the past, the processing stage of continuous separation therefore frequently had to be simulated with alternative batch-wise separation methods.

The laboratory decanters are used for solid-liquid separation, their principal application being the separation of liquid-based suspensions of organic and inorganic solids.


Product parameter

Model	Drum diameter  mm	Draw Ratio L/D	Speed of drum r/min	Factor of separation G	Spiral difference rotate speed r/min	Inlet capacity(m3/h)	Main/assist motor (KW)
LW150	150	4.33	6000	2621	0.1～30	1-5	4/1.5

The working principle of horizontal screw centrifuge is very simple. It has been known by the public for a century. The drum and screw are supported by separate suspension.The material enters through the inlet pipe and accelerates into the core drum body through the drum.

Separation process:
The core consists of a cylindrical and conical rotating drum, and the centrifuge forces the solid material to deposit on the drum wall.

Solid discharge:
The helix has the same shape and Angle as the drum, rotating at a slightly faster speed than the drum, so that the separated solids are pushed towards the end of the narrow cone and expelled from the drum.The degree of dehydration of solids depends on many factors, in addition to the reason of the material itself, but also depends on the length of the separation of solids in the centrifuge, as well as the Angle of the tight rotation of solids, in addition to the screw and drum speed difference is also an important factor.

Drainage:
A chuck is installed at the bottom of the drum to adjust the depth of liquid level. The clarified liquid flows to the bottom along the spiral cylinder, and then is collected in the drain bucket to discharge the machine. The depth of the clarified liquid in the drum can be adjusted by changing different baffles.

Structure:
All the HY series of centrifuge on the basis of the compact design and simple operation to ensure the machine function and fully meet user requirements, the number of components including assembling the required equipment is kept to a minimum, so as to ensure the product assembly so need time is greatly reduced, further remove the assembly also need only 30 minutes, due to HY series
centrifuge operation is simple, for the use of a centrifuge also greatly reduce the training time, just daily centrifuge the maintenance.

Mini Laboratory Decanter Centrifuge Machine for Restaurant Waste Disposal

Shenzhou Laboratory Lab decanter centrifuge were developed specifically as two-phase decanter centrifuges for use in laboratories and pilot plants to enable small quantities of products to be processed at rates of between 1L/h to 200L/h in a continuous separation operation. The maximum throughput or feed rate depends on the separation characteristics of the specific products.

Advantage：

1. Universal settling centrifuge
2. Quick disassembling within 30 minutes
3. Minimal material residue, screw and drum clearance less than 0.3mm
4. Simple and straightforward control panel and operation
5. Compact design

APPICATION

Horizontal mini decanter centrifuge is usually used in the food fermentation industry, fine chemical, pharmaceutical and biotechnology industries. Except the research and development department, HY series of centrifuges should also be used to produce high quality products with flow rate less than 200L/H. HYseries can also be used as measuring instruments to record the two-phase flow characteristics of the test products and the torque changes and power consumption of the screw, and to modify the process from the flow behavior of the products.



Packing & Delivery

1.Parking:standard wooden box
2.Spare parts :we supply some parts and accessories for free.
3.Electronic module:it is made up of electronic control cabinet.
4.Special tools:we supply a set special tools for free.
Company Profile

Liaoyang Shenzhou Machinery Equipment Co., Ltd. the professional manufacturer of Centrifuge & Separator, Liquid Filling Machine and packing machine. With many years producing experience, our factory have become leading manufacturer with professional technical team and Independent after-sale department.

Our international trade department can supply the whole project service. With many years development, we have known which factories have strong product with competitive price and we have built long-term and stable cooperation relationship with them. Our main area are the food and pharmacy project. Our successful project are coconut oil production line, liquid filling production line, packing production line and the tablet press production line, soft gelatin production line and so on. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country: At present, our products have been exported to South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, the United States, Canada, Australia, Spain, Japan, Colombia, Romania and so on more than 30 countries


FAQ
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
