Palm Fruit Oil Press machine Automatic Groundnut Combined Sesame Hydraulic Cold Press Oil Extractor

Availability:

Quantity:



Inquire Add to Basket

Model:
SZ-150
Brand:
SHENZHOU

Product Description

Product Advantages

1. The main part adopts hard chrome plating process, and the color is uniform and does not fade.
2. Lower the bottom plate of the host to increase dust resistance.
3. Original stainless steel, exquisite appearance and low failure rate.
4. Separate the oil line process from top to bottom to improve the oil output rate

Product Features
1. The pressure value in actual work is greater, the oil output rate is higher, and the safety is higher.
2. Hard chrome electricity instead of decorative chrome. It won't fall off the plating.
3. The load-bearing panel and load-bearing column are made of characteristic steel instead of ordinary steel to ensure durability and safety.
4. Each mm of key parts is professionally inspected. Any plate is discarded if there is a problem. No defective plate is allowed for equipment manufacturing.
5. Use high-quality motor to ensure strong heart power. Low failure rate.
6. Patent barrel, increase the oil output on the premise of ensuring strength.
7. Design. Reduce the height of the bottom plate of the main engine, and improve the dust-proof effect of the fuel tank.

Specification

ITEM	CONTENT
Equipment Type	SZ-150	SZ-180	SZ-230	SZ-320	SZ-360	SZ-416	SZ-460
External Dimension	787.8m	89 1.05m	911.4m	1.121.21.65m	1.21.2 1.68m	1.251.25 1.7m	1.51.52.15m
Working Pressure	55-60Mpa
Weight	240kg	550kg	950kg	1700kg	2000kg	2200kgs	3000kgs
Piston Section Diameter	100mm	150mm	230mm	260mm	280mm	300mm	320mm
60 Mpa Force	47t	106t	188	318t	369t	424t	482t
Tank Capacity	2KG	4KG	8KG	17.5KG	22.5KG	30KG	45KG
Oil Cake Diameter	155mm	192mm	242mm	323mm	370mm	415mm	460mm
Capacity	12kg/h	20kg/h	40kg/h	70kg/h	90kg/h	120kg/h	180kg/h
Power	0.75kw	1.5kw	1.5kw	2.2kw	2.2kw	2.2kw	3.0kw

Details Images

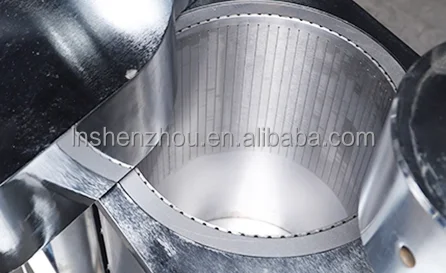

Pressing Kettle Precision oil line

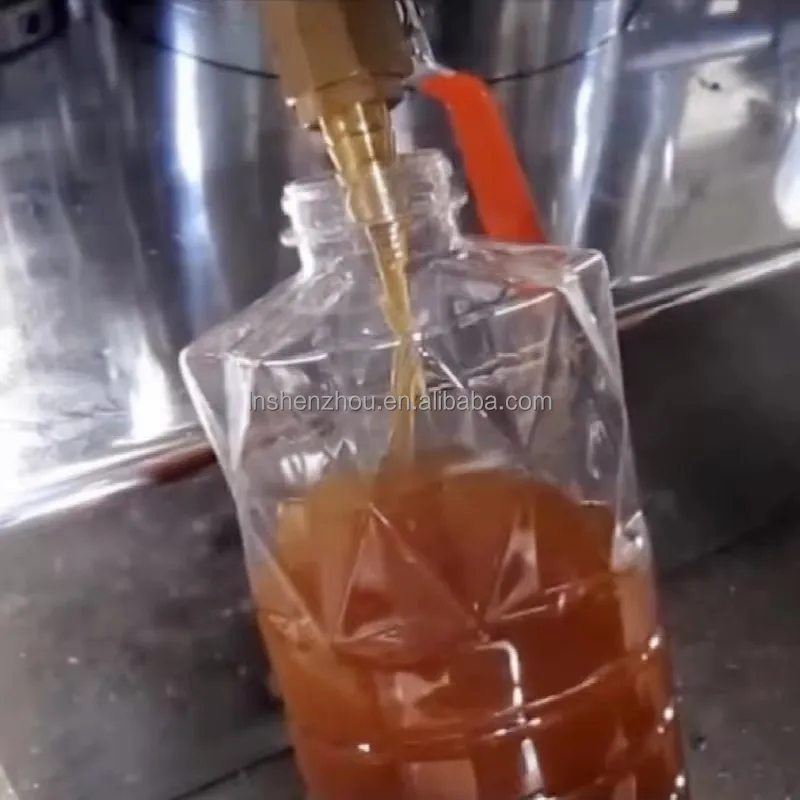

Just 0.36mm, filtering residues, the finally oil can reach to the cooking grade directly,
the oil is clear and edible. High quality steel and special heating treatment make it stronger enough and safety.

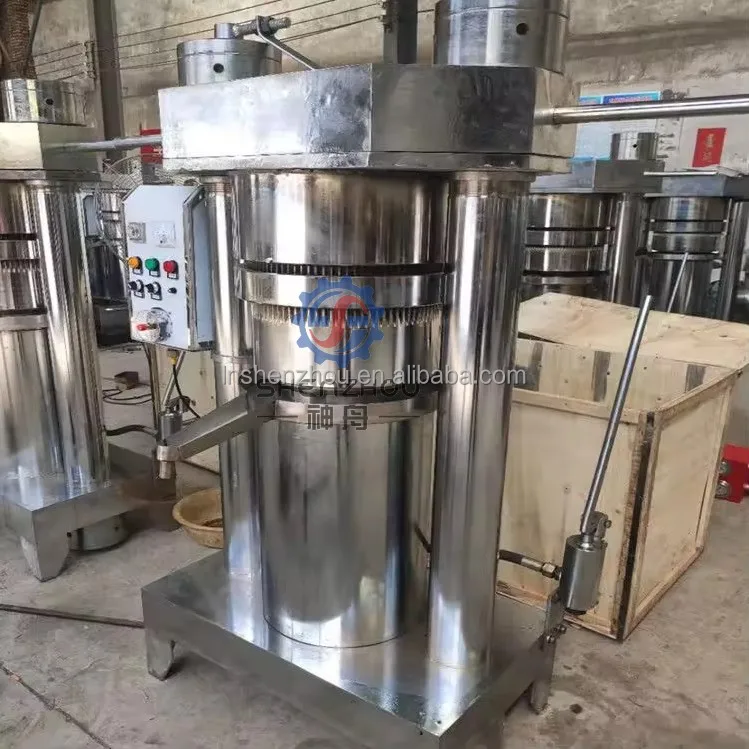

Electric control panel

Internal temperature control parts to solve the problem of low oil yield in winter (the normal of machine's oil yield will be
lower in winter）. Only two buttons control the whole working pressure and temperature, very simple to operate. The buttons was
test very strictly before shipping, make sure it safety and Long service life.

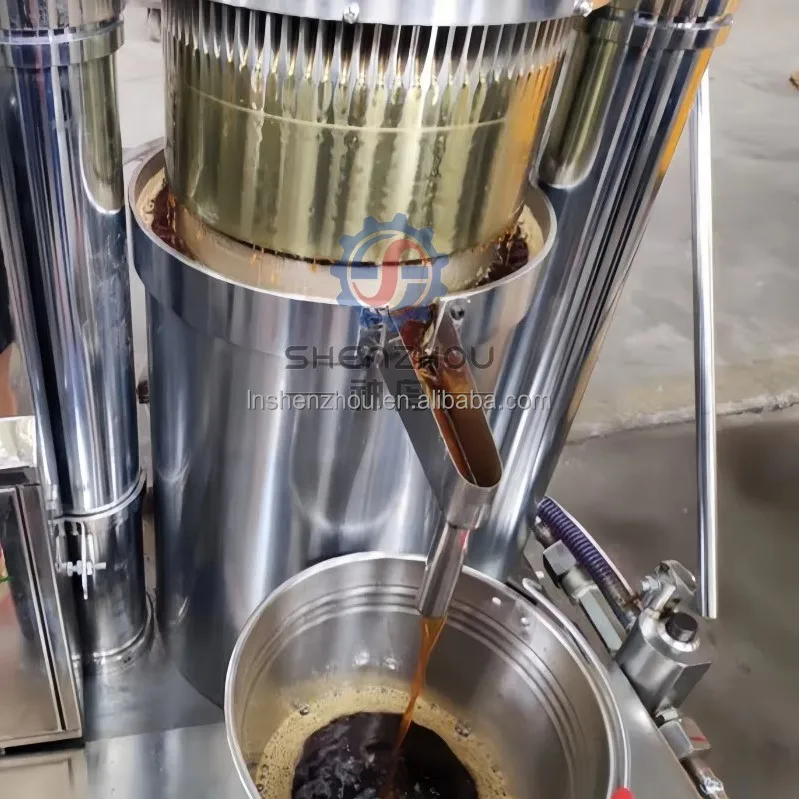

Pressure Kettle

Carbon steel material The total multiplying high pressure of the oil cylinder is pushed upward, and the oil flows out from the oil
slit of the frying chamber.

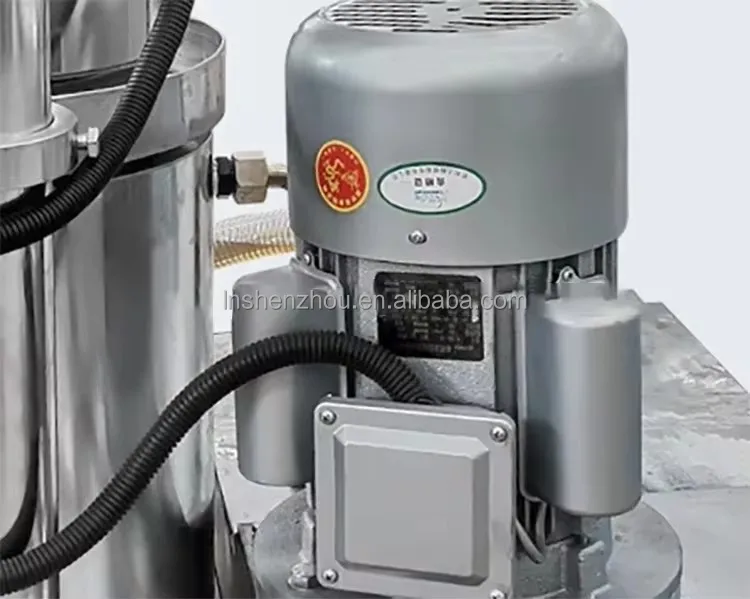

Hydraulic Pump

The core part of the machine which offers the main power for the machine. We use the double hydraulic pump system to improve the
working efficiency. Real max working pressure can be reached 60 MPa. This machine adopts advanced hydraulic pump station, low
speed, high oil pressure and high tempera-tureresistance. stable performance

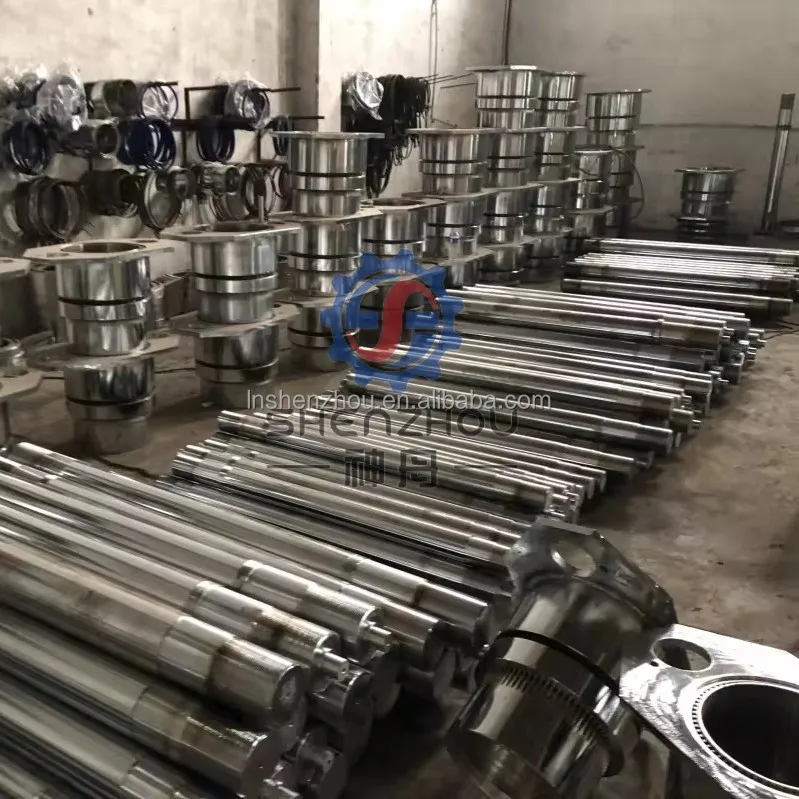

Solid piston

Using high quality steel, pressing more thorough and cleaner. Repeatedly squeeze the material to increase oil yield.

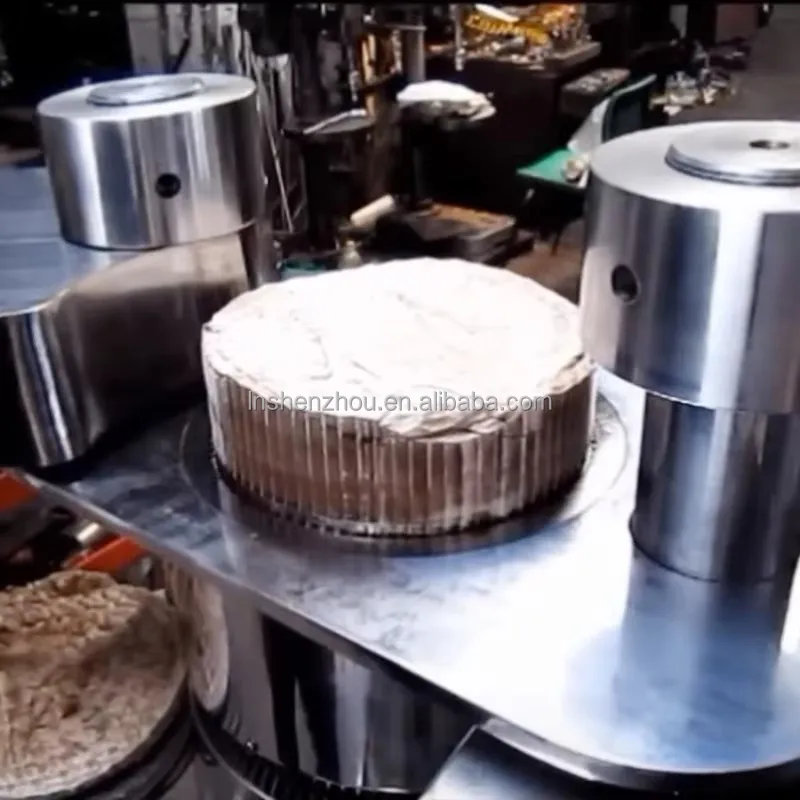

The Uses and Benefits of Hydraulic Oil Press CakeA press cake or oil cake which as a by-product produced by our hydraulic oil press machine can be mainly used as feed or ingredients. You can resuse the oil cake in many ways, like making pancakes, as animal feed for cattle, sheep, poultry, fish and shrimp, etc, using as fertilizer of flowers, selling to feed mill and farms which can bring you extra profits.
