Product Description
rd Shenzhou Compost Fertilizer Production Line/Organic Fertilizer Making Machine/Production Line Fertilizer
| No | Equipment name | Equipment description |
| 1 | Materials crushing | Crushing materials into small pieces. |

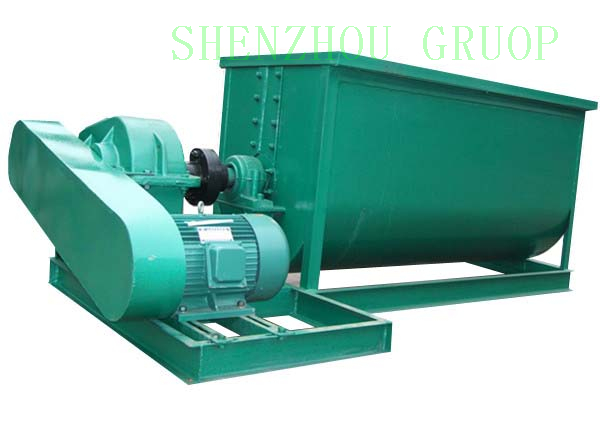

| 2 | Mixing | The mixed material should be mixed completely, then get into granulator. |
| 3 | Granulation | The special organic fertilizer granulator can make the materials into granules. |
| 4 | Drying | After granulating, the moisture of fertilizer is bit high, it is not suitable for long-term storage, so we need drying process. |
| 5 | Cooling | The cooling machine is used to cool the hot fertilizer. |
| 6 | Screening | There are some non-uniform particles after sieving, the smaller particles are sending to mixer, the bigger particles are sending to crusher. |
| 7 | Coating | The particle surface is not uniform, sleek case, we need to coat the surface of fertilizer granules. |
| 8 | Packing | After package, ther fertilizer can be sold. |
Oragnic Fertilizer Plant Raw material:
1. Agricultural waste: straw, dregs of beans, cotton dregs, rice bran,etc.
2. Animal manure: mixture of poultry litter (PL) and animal waste(AW),such as,
Slaughterhouse Waste,Fish Market,Urine and dung of cattle,Pigs,Sheep,Chicken,
Ducks, Geese,Goat.etc.
3.Industrial waste: wine lees, vinegar residue, manioc waste, sugar scum, furfural residue etc.
4. Home scrap: food waste, bones, the roots and leaves of vegetables, etc.
5. Sludge: the sludge of the river, the sewer, etc.
Main granulation machine for organic fertilizer
1. Strong adaptability, suitable for the production of compound fertilizer and organic fertilizer with different formulas, different water contents and different concentrations. 2. Unique drying and cooling technology, which can fully dry and cool the materials, and can also perform secondary rounding and polishing on the particles. 3. Low temperature drying technology can produce ecological fertilizers rich in active microorganisms. 4. Advanced process design, reasonable equipment layout, compact structure and small footprint. 5. The tumble dryer is used as the host of the system, which has strong adaptability, simple operation, stable operation and reliability. 6. Can be equipped with fuel, gas, coal, biomass and other efficient automatic (or manual) hot air stoves for heating, reasonable design, high thermal efficiency, low drying costs. 7.Unique sealing device can not only improve the efficiency, but also no dust overflow and improve the operating environment. 8. Adapt to customers with different production capacities, with an annual output of 1-20 million tons.
Characteristic:
Model | Power(kw) | Granule Diameter(mm) | Roller Sheet Size(mm) | Dimensions(mm) |
SZ-1T | 15 | 3-10 | 150*220 | 1450*800*1450 |
SZ-1.5T | 22 | 3-10 | 150*300 | 1450*850*1500 |
SZ-2T | 30 | 3-10 | 185*300 | 1630*850*1650 |
SZ-3T | 37 | 3-10 | 300*300 | 1850*1100*2050 |

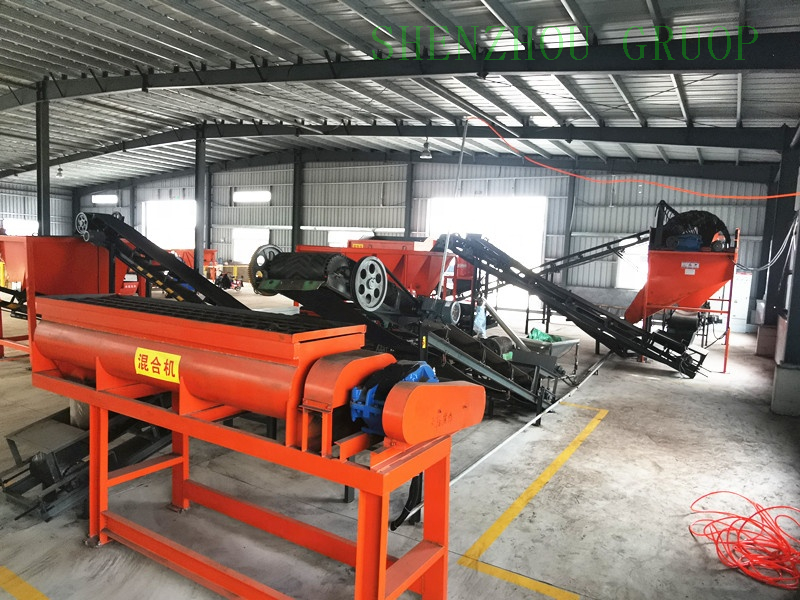

Organic Fertilizer Production Line
Double roller press granulating production line used for processing compound fertilizer granules, it has the characteristics of advanced technology, reasonable design, compact structure, novelty and utility and low energy consumption.
The machine adopts the eugenic formula without drying and produce fertilizer by normal temperature; the product once rolled and formed, meeting the requirements of technical specifications of compound fertilizer.Therefore, it is the upgraded machine for the production of high, medium and low concentration special compound fertilizer and the renewable energy consumption of the compound fertilizer industry.
Main features as follows:
1. Production by no drying process, and granulation at room temperature;
2. Less investment, quick and good economic returns, reliable performance.
3. Function with granulation, screener with Low Power, no waste discharge, stable operation,easy maintenance
4. Suitable for granulation in many industries, such as fertilizer, feed, and cemical etc
Main equipment included:
1. Dynamic batching system
The dynamic batching machine is suitable for the site of continuous batching,such as fertilizer batching and coking batching.These sites have higher requirements on the continuity of the batching,which generally do not allow the intermediate batching to stop,and the requirements for the proportioning of various materials are strict.The dynamic batching system is usually measured by electronic belt scale or nuclear scale,and the host has PID regulation and alarm function,which can realize the automatic control of a warehouse.
Performance characteristics
It is suitable for dynamic batching machines such as mixing stations, chemical plants, formula fertilizer processing plants, etc. It has the characteristics of small error, high output and simple operation.Double roller mixer machine
2. Disc feeder machine
The disc feeder machine not only can be used for feeding the raw materials to granulators,but also can be used a mixer to mixing the materials,it has long service life, energy saving, small volume, fast stirring speed and continuous working
3. Double roller press granulator
Double roller press granulator is the key equipment for compound fertilizer granulation. It uses squeezing principle to form fertilizer particles with diameters of 3-10mm in one time. The shape and size of the ball socket on the roller shell can be customized by customer. Dry type fertilizer Double Roller Granulator has higher granulating ratio of over 95%. With no drying technology, materials will be pressed into ball shape to meet the requirements of compound fertilizer production in Compound Fertilizer Double Roller Granulator.
4. Screener machine
The rotary screening machine is a new type of self-cleaning screen special equipment after the electric vibrating screener and the ordinary network type roller screen produced by the domestic companies.It is widely applicable to sieving of various solid materials with particle size less than 300mm.It has many characteristics such as high screening efficiency,low noise,small amount of dust,long service life,less maintenance,and its screening capacity is 1t/h-20t/h.
5. Packing machine
This packing scale is designed for quantitative packaging, It adopts the integrated structure, and has the characteristics of low scale height, compact structure, high efficiency, novel appearance, easy installation and convenient maintenance. The quantitative precision of the system is 2%.
Contact person:Cathy
Whatsapp:+8618941925296
Email:cathy@lnszjx.com
Packing & Delivery
1.Parking:standard wooden box
2.Spare parts :we supply some parts and accessories for free.
3.Electronic module:it is made up of electronic control cabinet.
4.Special tools:we supply a set special tools for free.
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd. the professional manufacturer of Centrifuge & Separator, Liquid Filling Machine and packing machine. With many years producing experience, our factory have become leading manufacturer with professional technical team and Independent after-sale department.
Our international trade department can supply the whole project service. With many years development, we have known which factories have strong product with competitive price and we have built long-term and stable cooperation relationship with them. Our main area are the food and pharmacy project. Our successful project are coconut oil production line, liquid filling production line, packing production line and the tablet press production line, soft gelatin production line and so on. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country: At present, our products have been exported to South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, the United States, Canada, Australia, Spain, Japan, Colombia, Romania and so on more than 30 countries
FAQ
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
