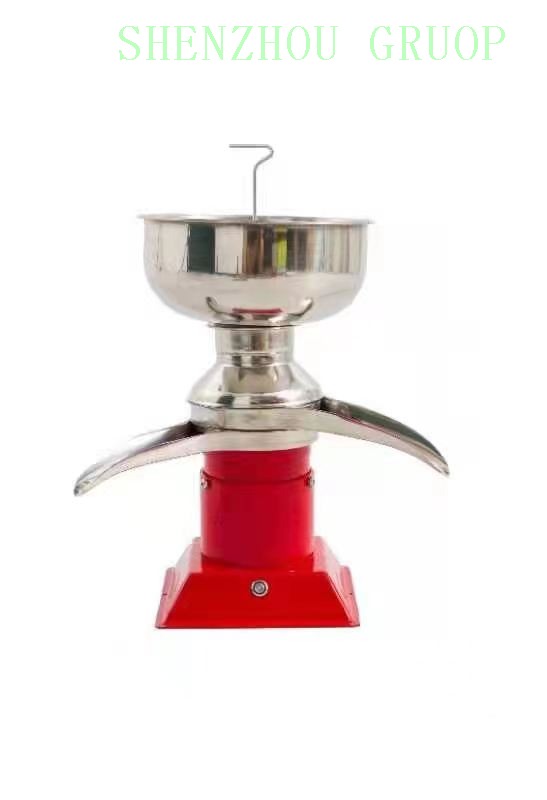

Shenzhou Household Electric Milk Separator Milk Cream Centrifugal Separator Machine

High quality small capacity milk cream separator
1)This machine is directly driven by the high speed motor, has the advantages of energy saving, durable and convenient repair.Use this machine the fat content in skim milk can be reduced to 0.02%-0.05%.
2)Res-ND50 vertical milk separator is disc type centrifugal separator, the milk is separated into two parts cream and skim milk by centrifugal force generated by high speed rotating. Important parts of the machine are made of high quality material, and after heat treatment, durable. All the milk and contact parts are stainless steel or tin material, has good corrosion resistance.
Availability:
Quantity:
  • SZ-ND50

  • SHENZHOU

Shenzhou Household Electric Milk Separator Milk Cream Centrifugal Separator Machine

Milk separator


The milk separator series consists of two major categories:
One is the net milk separator: the machine is used to clean raw milk to remove mechanical impurities and milk sticky dirt, milk
clarifier is dish, centrifugal periodic discharge, and milking equipment, milk products factory equipment using a combination of
other. This series of machines has manual, automatic slag discharge function, high pressure water inlet system, which greatly
reduces the milk loss during slag discharge.
One is the cream separator: the separator is used to separate raw milk into milk fat and skim milk, and to achieve the purpose of
net milk. The special design of the inlet of the separator does not break the fat ball, and the double pressure regulating valve
can adjust the concentration of the cream at will. The fat content in skim milk can be reduced to 0.02%-0.05%.. Our company mainly

produces the cream separator in this category.




High Quality Small Capacity Milk Cream Separator
High Quality Small Capacity Milk Cream Separator
High Quality Small Capacity Milk Cream Separator
High Quality Small Capacity Milk Cream Separator


High Quality Small Capacity Milk Cream Separator
High Quality Small Capacity Milk Cream Separator



Applications:
• Milk and whey cream skimming
• Clarification of milk and whey
• Bacteria removal from milk and whey
• Cream concentration
• Standardization of milk, cream and whey cream
Characteristic
1. Long service life, small volume, large power, clean and thorough separation, continuous working time > 8 hours;
2. The consistency of cream can be adjusted;
Technical Paramers

Model
SZ-ND50
Capacity
50L/H
Type:
AC220V, DC12V AC / DC dual purpose electric disc centrifugal
Cream content
≤ 0.05%
Volume rate range
1: 4~1: 10
Milk pot capacity (L):
5L
Best Speed
8000-10000 r/min
Milk receiver capacity
12L
Motor power (W):
≈ 40
Separated milk temperature
35-40ºC
Dimension
500*360*200mm
Weight
10 kg

Operation Attentions of Milk cream Separator
1.In the use of the separator, must be familiar with the contents of this manual should be consulted to manufacturers, puzzled.
2.Separator placed unstable shall not operate.
3.The boot after the separating bowl when reaching the rated speed such as abnormal noise should immediately stop check.
4.Separating round nut bowl must be tightened, otherwise there will be a serious accident.
5.The bowl is running, not to hand to stop.
6.Should be cleaned immediately after use, wipe machine.
7.The use of such as the discovery of speed down or speed is not up to the requirements, should be invited to professional
inspection machine, cleaning machine of dust, in order to ensure the normal use.
8.The use of a certain risk, prohibit minors to operate the machine.
9.Pay attention to electrical safety, to avoid accidents.
10.Remove the bowl, the nut is loose, the bowl can be inverted, in wood gently tapping, to remove the bowl cover.
Basic configuration requirements:
1. One milk separator
2. One 12V regulated power supply
3. Foam box 1.
4. Instruction manual: 1 copy
5. Quality assurance card: 1 copy
6. One external packing carton

High Quality Small Capacity Milk Cream Separator
High Quality Small Capacity Milk Cream Separator
High Quality Small Capacity Milk Cream Separator
High Quality Small Capacity Milk Cream Separator
