Shenzhou rotary vibrating screen machine vibrating sieve equipment vibration filter sifter for powder

Home » Products » Other Centrifuge » Filter Centrifuge » Shenzhou rotary vibrating screen machine vibrating sieve equipment vibration filter sifter for powder

Share to:

Shenzhou rotary vibrating screen machine vibrating sieve equipment vibration filter sifter for powder

Name: Shenzhou rotary vibrating screen machine vibrating sieve equipment vibration filter sifter for powder
Brand: SHENZHOU
Rating: 5.0 (71 reviews)

Rotary vibrating screen machine is designed as a high-precision screening machinery. vibrator sieve sifter is composed of vertical motor,and eccentric weight installed at two ends.We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight.Material can be divided into all carbon steel,contact part stainless steel and all stainless steel.

Availability:

Quantity:



Inquire Add to Basket

Model:
SZ400
Brand:
SHENZHOU
Code:
1596

Product Description

Product Overview

Overview of Vibrating Screen:

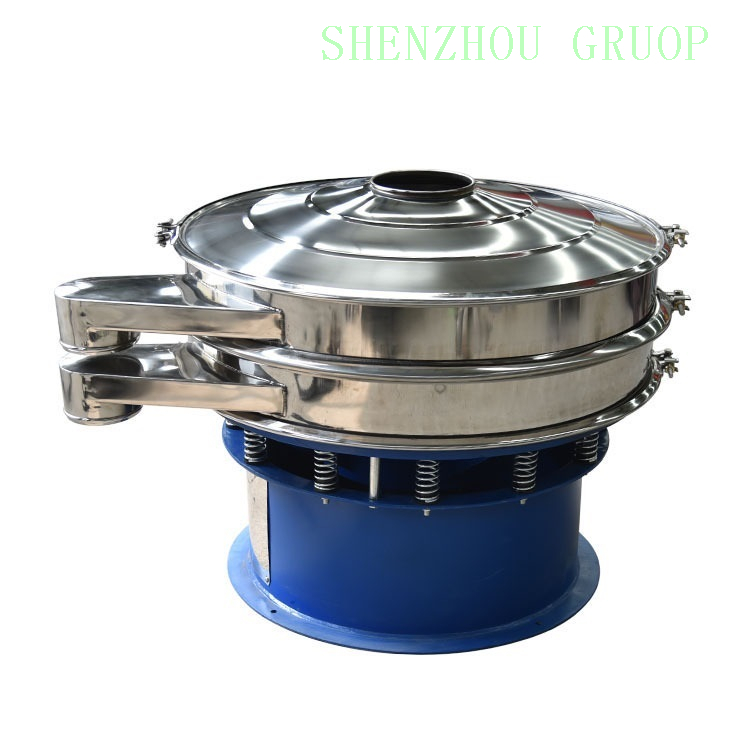

Shenzhou Vibrating Screen is a special screening equipment with international level, high precision and fine particle on the basis of advanced technology from home and abroad. Vibrating Screen advantages are as follows: fully closed, no dust emission,continuous operation; high screening precision, efficiency and utilization rate of screen; small volume, light in weight, start quickly, low noise; easy operation, convenient maintenance, long service life of screen; the discharge port direction changed along the circumferential direction. Vibrating Screen machine is widely used in screening fine powder, micro powder, submicron powder, bar, dry and wet materials.

1699242595799

Characteristics of Vibrating Screen:

1.The widest range of screening: applicable to all kinds of particles, powder, and slurry filter. 2.The mesh not block: a variety of specially designed screen of the cleaning device make the probability of blocking the mesh approach the minimum. 3.Single layer and multi-layer separation; Single layer filtration, once to achieve the requirements 4.Easy to change the screen; no deformation of the mesh, long service life of screen, high efficiency

Model	Power	Layer	Screen dish	Effective area
SZ400	0.25kw	1-4	Φ360mm	0.0324 m2
SZ600	0.55kw	1-4	Φ560mm	0.2375 m2
SZ800	0.75kw	1-4	Φ760mm	0.4416 m2
SZ1000	0.75-1.5kw	1-4	Φ930mm	0.6789 m2
SZ1200	1.1-1.75kw	1-4	Φ1130mm	1.0382 m2
SZ1500	2.2kw	1-4	Φ1430mm	1.6052 m2
SZ1800	2.2-3.0kw	1-4	Φ1730mm	2.3523 m2

What questions do you have?Please contact me

Cathy

Shenzhou Group Co.,Ltd

Whatsapp:+8613130722088

Email:cathy@lnszjx.com

Customized product case:

Machine sheets (304/316L stainless steel, carbon steel, PP plastic sheet, surface coated with Teflon) can be customized. Supporting parts can be added (import and export iron removal device, raised base, dust cover opening, electric scraper brush, import and export silo, bracket)

Vibrating Screen application scenario：
