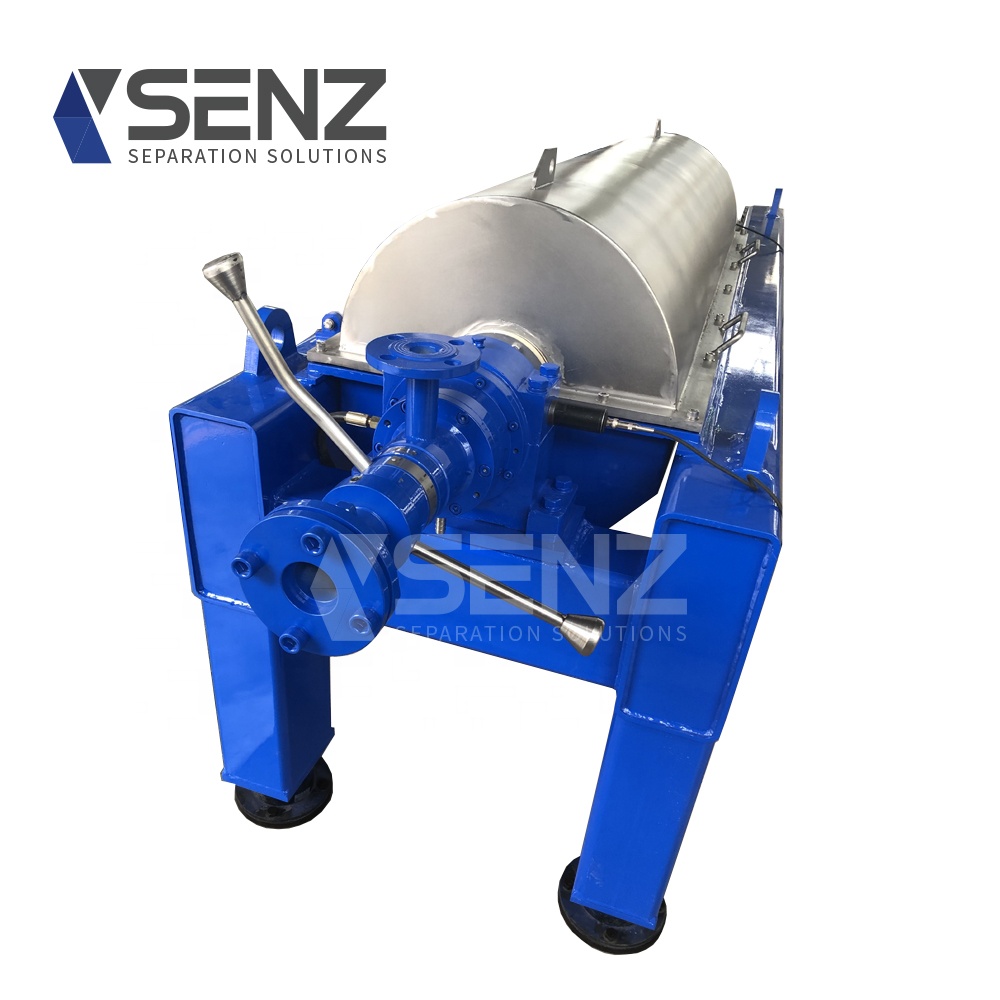

Sludge Dewatering Decanter Centrifuge High Capacity Tricanter Centrifuge

The 3-phase decanter centrifuge is used for the separation of 3-phase materials. According to the different densities of materials, under the action of centrifugal force, the 3-phase separation of solid, liquid, and liquid can be achieved.

In order to achieve three-phase separation, the solid phase material needs to be clearly identified as the heavier part, and the other two liquid phases should have different densities.

The structure and working principle of a three-phase centrifuge are similar to those of a two-phase centrifuge,

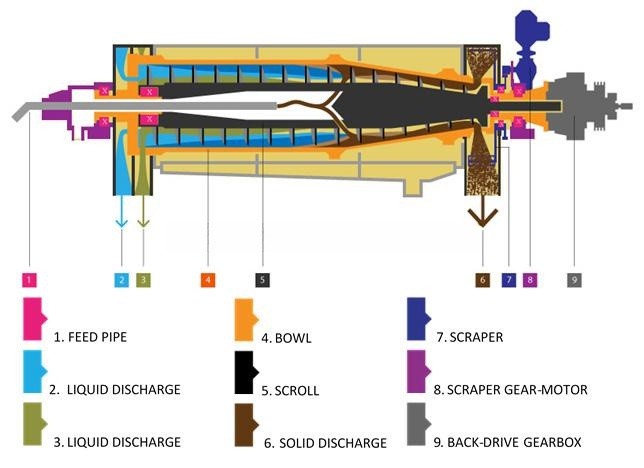

except for the discharge of the liquid phase. In the use of 3-phase centrifuges, high-density liquid phases are discharged through pressure, while low-density liquid phases are discharged without pressure. The following is the working principle diagram of a three-phase centrifuge.

The advantages of our product

1. Industrial design

The whole machine set design follows the concept of advanced industrial design, ensuring the whole machine's stability, functionality, and safety. Also effectively absorbs the shear force of dynamic load during operation.

2. Effectively ease resonance during the rotating of bi-rotor

When the centrifuge works, there are no obvious first-order and two-order resonance regions within the designed speed range, meanwhile, the whole vibration intensity of the bearing seat is definitely within 2mm/s-4mm/s.All of this eliminates extra fatigue damage to components and assembly units from high-frequency vibration during operation and sudden vibration when shut down.

3. Thoroughly eliminate the phenomenon of liquid ring stalling

The phenomenon of liquid ring stalling happens during the heavy-duty boot or shutdown process of a complete set machine, especially for LW550 and even larger models, It would make a bounce or wild shake, causing extra impact fatigue damage to main bearings, screw bearings, and inner parts of the rotary bowl. Fortunately, our engineers have solved this problem thoroughly.

4. Unique technique adopts in main component work-blanks

The manufacturing methods of main component work blanks adopt the centrifugal casting technique and overall mold-making forging technique, thoroughly avoiding risks such as intergranular corrosion and relaxation of residual stress release in welding joints.

5. Main bearing electrical components selection

We use the origin bearings of international first-line brands such as S-K-F, F-A-G, etc. Electrical components mainly adopt ABB and Siemens

6. Constant temperature detection

All fashioning components and assembly units are detected in constant temperature conditions to ensure that actual processing quality meets the requirements of designed precision accuracy.

7. Inter-change ability

Whole machine physical design and processing technique adopted in critical position, ensure all assembly units and bowls of the same centrifuge model are interchangeable. It is not only easy to maintain, but also greatly improves the reliability and safety of the equipment.

8. Simply and safely in bearing disassemblement

One layer of oil film is injected into contact surfaces between the bearing and work-piece by high-

pressure, during the disassemblement bearing from the machine.which would fundamentally eliminate friction within different parts. As a result, it would reduce 90% of the pulling force and lower the risk of damage to high-precision parts when disassembling the bearings.

9. Automatic main bearing lubrication system

Thin oil lubrication

* Oil pump offers uninterrupted power to ensure oil works circularly;

* Jet oil lubrication constantly cleans and lubricates bearings and reduces temperature;

* Oil filter system ensures lubricant's cleanliness;

* Oil pressure energy storage system ensure lubrication pump offers an extra oil supply(the pressure is no less than 0.4Mpa) for  5-6 minutes  when power fails accidentally;

* Constant temperature system is available.

* Adopt a grease with properties of extreme pressure resistance, oxidation resistance, abrasion resistance, water scour resistance,corrosion-proof, and high-temperature resistance.

* Automatic grease system fills grease on the main bearing at designed hours and quantity.

10.  Main bearing BH device (patent design)

There are two spare safe bearings at either end of the main bearing. When the machine works well, they keep a certain clearance from the bearing inside the track to the chief axis. When an unexpected condition occurs, the main bearing getting damaged or circle center deviation causing an amplitude of vibration reaches to designed clearance, safe bearings begin to work as the main bearing Meanwhile, the computer's automatic control system would get feedback of abnormal vibration values on the bearing position immediately then activates emergency shutdown and goes a smooth shut down. This system protects the machine free from damage and ensures production safety.

11.  GSRL feeding device (potent design)

The new design of the internal spiral core tube has got the following achieves. Without reducing centrifugal acceleration, shorten the triangle belt's traction time, reduce disorder of swirling flow, and extend separation time. Meanwhile increases the inner working pressure of the centrifuge, and restrains liquid from foaming

Our service& FAQ

The one-year warranty period for the whole machine except for tubes and human factors etc, and 12 months of after-sale service from the date  when you receive the machine or 12 months when installation is finished;

Consultant services for whole machine life, and 24-hour technical support by email;

UPS, English software, user manual, and the installation & debugging by our experienced technicians.

1. Can your machine meet our needs well?

We will supply you with a proposal as to your specific requirement, and each machine is customized to satisfy the customer's need well.

2. Are you a factory or a trading company?

We are the manufacturer and have been in the industry for more than thirty years.

3. What's your payment way?

T/T by our bank account directly, or by Made in China trade assurance service, by the West Union, or in cash.

4. How can you ensure the machine's quality after we put the order?

Before the delivery, we will send you the machine's pictures and videos, or you can come to us to have the quality checked by yourself, or by the third-party inspection organization contacted by your side.

5. We are afraid you won't deliver the machine after we pay you the money.

Please note our above business license and certificates. And if you don't trust us, you can use Made in China trade assurance service or LC, Which will fairly protect your rights and money throughout the transaction process.

6. Why did you choose your company?

We have been specializing in the manufacturing of centrifuges for over 30 years. We can provide top-notch quality and very competitive prices .
